KYW Centrifugal Pump Theory and Electric Power Irrigation Water Pumps Sale

Availability:
Quantity:
  • KYW
  • KAIYUAN
Product Description

KYW Centrifugal Pump Theory and Electric Power Irrigation Water Pumps Sale

OVERVIEW:

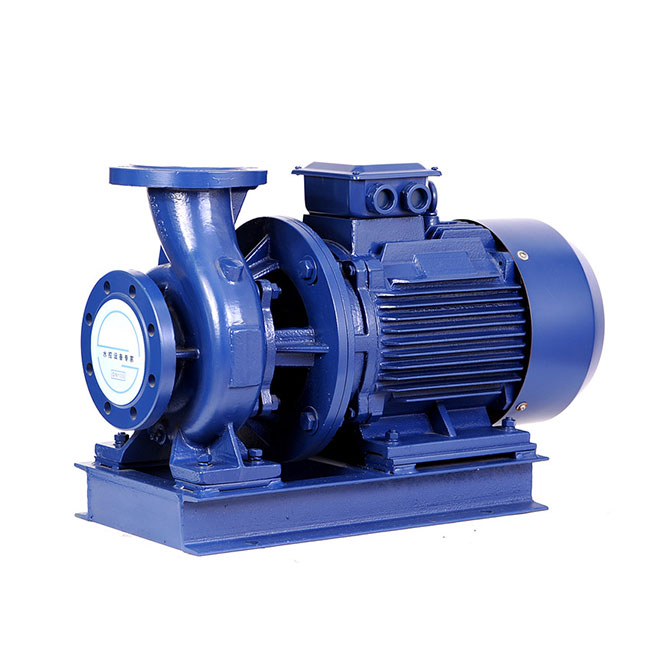

KYW series single-stage single-suction horizontal-type centrifugal pump are made by way of improving the design of KYL series vertical centrifugal pumps of this Co. with the performance parameters identical to those of KYL series and in line with the requirements of IS02858. The products are produced strictly according to the relevant requirements, so they have a stable quality and reliable performance and are the brand-new ones instead of model IS horizontal pump, model DL pump etc. ordinary pump.

They are divided into basic type, flow-expansion type, A, B, C cutting type etc. In more than 250 specifications and with a flow range of 1.5-1200m3/h and a head range of 8-150m. And, per the different fluid media and temperatures, model KYWR hot-water pump, model KYWH

Chemical pump, model KYWB oil pump and model KYWHB horizontal anti-explosion chemical pump etc. series products are designed and manufactured and have the same performance parameters.

FEATURES:

1. Compact structure. These series pumps have an integrally horizontal structure, beautiful appearance and less area of occupied land, which, comparing with the ordinary ones, is reduced by 30%.

2. Stable running, low noise, high concentricity of assembly. By the straight joint between the motor and the pump, the middle structure is made simplified, thus enhancing the running stability, making the impeller of a good balance of moving-resting, resulting in no vibration during running and improving the environment of use.

3. No leakage. Mechanical seal of corrosive-proof hard metal alloy is used for the shaft sealing so as to get rid of serious leakage of the filings of centrifugal pumps and ensure the operating place clean and neat.

4. Convenient service. Service can be easily done without removing any pipeline because of the back-door structure.

5. Viewing from the inlet of the pump, the outlet of it can be mounted in one of the three ways, horizontally leftward, vertically upward and horizontally rightward.

APPLICATIONS:

1.KYW series horizontal centrifugal pump is used to transport pure water and other liquids of the similar physical nature as pure water and suitable for water supply and drainage in industries and cities, boost water-feeding of high buildings, garden irrigation, fire-fighting boost, remote water-transportation,warming, cold-hot water circulation and boost in bathrooms, and equipment completing as well.The temperature of the used medium' S temperature is under 120℃.

2.KYWR series horizontal hot-water pump is suitable for the warming, hot-water boost, circulation, transportation etc.heat-supply system of the buildings and houses in civil and enterprise units, such as power station, thermal power station, residual heat utilization, metallurgy, chemical industry, textile, wood process, paper-making etc. where is a high-temperature hot-water supply system from industrial boilers.The used medium' S temperature is under 120℃.

3.KYWH series horizontal chemical pump is used to transport the liquid containing no solid grain, of causticity and similar viscosity like water and suitable for light textile industry, petroleum, chemistry, metallurgy, electric power, paper-making, food, pharmacy, synthetic fiber etc.departments.The operation temperature is -20 to 120℃.

4.KYWB series horizontal anti-explosion oil pump is suitable for the industries of petroleum, light textile industry, chemistry, mechanism etc.to transport non-corrosive, combustible and explosive liquids, the temperature of the transported medium is -20 to 120C and the medium intensity<1 000kg/CBM

5.KYWHB series horizontal anti-explosion chemical pump is used to transport the liquid containing no solid grain of causticity and similar viscosity like water, combustible and explosive and suitable for light textile industry, petroleum, chemistry, metallurgy, mine, pharmacy, synthetic fiber etc. department. The operation temperature is -20 to 120℃.

WORKING CONDITIONS:

1.Max.working pressure of pump system is ≤ 1.6MPa,that is to say the pressure at the suction and the stroke should be ≤ -1.6MPa, the pressure in static tests is 2.5MPa, please notify the pressure for the system at work when placing the order and it should be otherwise noted if the customerized pressure is larger than 1.6MPa so as to use cast steel material for the over-flow and joint pads.

2.Proper medium for pure-water pumps should have no corrosive liquid and volume of non-melting medium-solid should not be over 0.1% of the unit volume and the graininess less than 0.2mm. Please notify at order if the medium to be used with small grain.

3.Environment temperature: less than 40℃. Altitude: less than 1000m. Relative humidity:less than 95%.
