Product Description

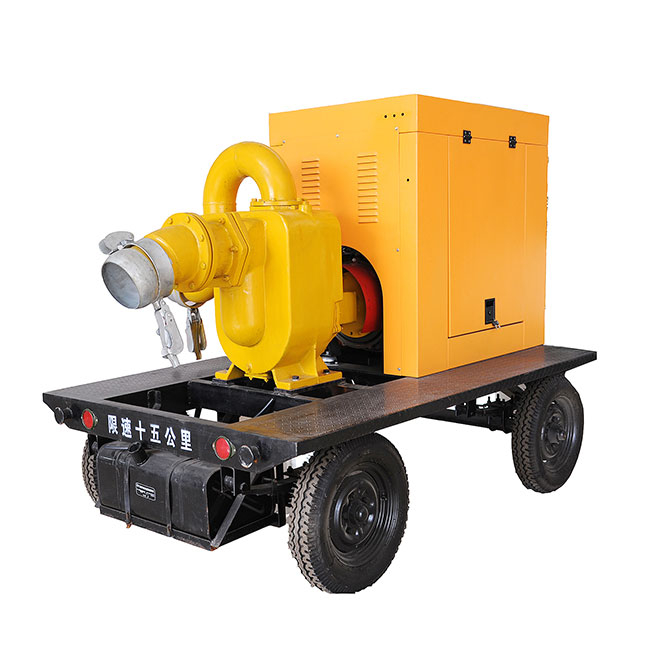

A late-model fire-fighting equipment, XBC diesel driven engine fire-fighting water pump group series with high pressure are
developed successfully, strictly complying with national standard-GB6245 2006 “Performance requirement and testing method of fire fighting pumps” and with NEPA20 “Installation of centrifugal fire-fighting pumps”.
Classified by fitted ones (single stage single suction type, single, this equipment can fall into three sub-categories: XBC-IS,
XBC-S and XBC-D The equipment are widely used in many occasions.
Related diesel engines are classical domestic or imported ones, which have features of stable starting, high capacity compact structure, easy maintenance and high automation, thus, they are fire-protection equipments with advanced and dependable performance.
Item | Diesel Engine Fire pump |
Material | Cast Iron |
Medium | Clear Water |
Flow | 30~2000m3/h |
Head | 20~500m |
Speed | 1480/2200rpm |
Power | 20~720kW |
Working Conditions
· Rotating speed: 1500~3000rpm.
· Flow range: 18-288m³/h
· Medium temperature: ≤80℃
· Head range: 0.3~2.0MPa
Applications
XBD is mainly used for fire-fighting systems in industries and civil buildings(fire plug distinguisher, auto spray system, and water spraying system). Besides, it also can be used as water supply for domestic water systems in buildings, cities, mines, boilers etc.equipments.
